Generic ECG machine to assess the heart rhythm. More...

#include <ECG.h>

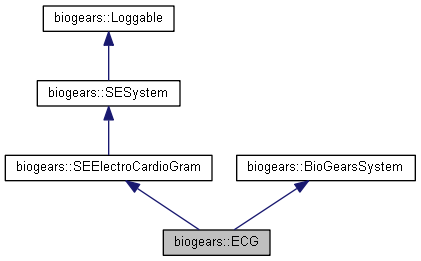

Inheritance diagram for biogears::ECG:

[legend]

Public Member Functions
virtual	~ECG () override

const char *	classname () const override

size_t	hash_code () const override

void	Clear () override
	Cleans up any memory this class is responsible for. More...

void	Initialize () override
	Initializes the ECG specific quantities. More...

virtual bool	Load (const CDM::BioGearsElectroCardioGramData &in)

virtual CDM::BioGearsElectroCardioGramData *	Unload () const override

void	PreProcess () override
	Prepares the ECG machine for the circuit solver. More...

void	Process () override
	Process creates the ECG output. More...

void	PostProcess () override
	Post process updates the math after the circuit calculation are done. More...

Public Member Functions inherited from biogears::SEElectroCardioGram
	SEElectroCardioGram (Logger *logger)

	~SEElectroCardioGram () override

const SEScalar *	GetScalar (const char *name) override

const SEScalar *	GetScalar (const std::string &name) override

bool	Load (const CDM::ElectroCardioGramData &in)

Tree< const char * >	GetPhysiologyRequestGraph () const override

bool	HasLead1ElectricPotential () const

SEScalarElectricPotential &	GetLead1ElectricPotential ()

double	GetLead1ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead2ElectricPotential () const

SEScalarElectricPotential &	GetLead2ElectricPotential ()

double	GetLead2ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead3ElectricPotential () const

SEScalarElectricPotential &	GetLead3ElectricPotential ()

double	GetLead3ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead4ElectricPotential () const

SEScalarElectricPotential &	GetLead4ElectricPotential ()

double	GetLead4ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead5ElectricPotential () const

SEScalarElectricPotential &	GetLead5ElectricPotential ()

double	GetLead5ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead6ElectricPotential () const

SEScalarElectricPotential &	GetLead6ElectricPotential ()

double	GetLead6ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead7ElectricPotential () const

SEScalarElectricPotential &	GetLead7ElectricPotential ()

double	GetLead7ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead8ElectricPotential () const

SEScalarElectricPotential &	GetLead8ElectricPotential ()

double	GetLead8ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead9ElectricPotential () const

SEScalarElectricPotential &	GetLead9ElectricPotential ()

double	GetLead9ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead10ElectricPotential () const

SEScalarElectricPotential &	GetLead10ElectricPotential ()

double	GetLead10ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead11ElectricPotential () const

SEScalarElectricPotential &	GetLead11ElectricPotential ()

double	GetLead11ElectricPotential (const ElectricPotentialUnit &unit) const

bool	HasLead12ElectricPotential () const

SEScalarElectricPotential &	GetLead12ElectricPotential ()

double	GetLead12ElectricPotential (const ElectricPotentialUnit &unit) const

Public Member Functions inherited from biogears::SESystem
	SESystem (Logger *logger)

virtual	~SESystem ()

bool	Load (const CDM::SystemData &in)

Public Member Functions inherited from biogears::Loggable
	Loggable ()

	Loggable (Logger *log)

virtual	~Loggable ()

virtual Logger *	GetLogger () const

Public Member Functions inherited from biogears::BioGearsSystem
virtual void	AtSteadyState ()
	Notify systems that steady state has been achieved. More...

Static Public Member Functions
static size_t	TypeHash ()

static constexpr char const *const	TypeTag ()

Static Public Member Functions inherited from biogears::SEElectroCardioGram
static size_t	TypeHash ()

static constexpr char const *const	TypeTag ()

Static Public Member Functions inherited from biogears::SESystem
static const SEScalar *	GetScalar (const char name, std::vector< SESystem > *systems)

static const SEScalar *	GetScalar (const std::string &name, std::vector< SESystem * > *systems)

Protected Member Functions
	ECG (BioGears &bg)

virtual void	Unload (CDM::BioGearsElectroCardioGramData &data) const

void	SetUp () override

Protected Member Functions inherited from biogears::SEElectroCardioGram
void	Unload (CDM::ElectroCardioGramData &data) const

Protected Member Functions inherited from biogears::SESystem
void	Unload (CDM::SystemData &data) const

Protected Member Functions inherited from biogears::Loggable
virtual void	Debug (const char msg, const char origin="") const

virtual void	Debug (const std::string &msg, const std::string &origin=empty) const

virtual void	Debug (std::ostream &msg, const std::string &origin=empty) const

virtual void	Info (const char msg, const char origin="") const

virtual void	Info (const std::string &msg, const std::string &origin=empty) const

virtual void	Info (std::ostream &msg, const std::string &origin=empty) const

virtual void	Warning (const char msg, const char origin="") const

virtual void	Warning (const std::string &msg, const std::string &origin=empty) const

virtual void	Warning (std::ostream &msg, const std::string &origin=empty) const

virtual void	Error (const char msg, const char origin="") const

virtual void	Error (const std::string msg, const std::string origin=empty) const

virtual void	Error (std::ostream &msg, const std::string &origin=empty) const

virtual void	Fatal (const char msg, const char origin="") const

virtual void	Fatal (const std::string &msg, const std::string &origin=empty) const

virtual void	Fatal (std::ostream &msg, const std::string &origin=empty) const

Protected Member Functions inherited from biogears::BioGearsSystem
virtual void	LoadState ()

Static Protected Member Functions
static auto	make_unique (BioGears &bg) -> std::unique_ptr< ECG >

Protected Attributes
BioGears &	m_data

SEScalarTime	m_heartRhythmTime

SEScalarTime	m_heartRhythmPeriod

SEElectroCardioGramInterpolator	m_interpolator

double	m_dt_s

Protected Attributes inherited from biogears::SEElectroCardioGram
SEScalarElectricPotential *	m_Lead1ElectricPotential

SEScalarElectricPotential *	m_Lead2ElectricPotential

SEScalarElectricPotential *	m_Lead3ElectricPotential

SEScalarElectricPotential *	m_Lead4ElectricPotential

SEScalarElectricPotential *	m_Lead5ElectricPotential

SEScalarElectricPotential *	m_Lead6ElectricPotential

SEScalarElectricPotential *	m_Lead7ElectricPotential

SEScalarElectricPotential *	m_Lead8ElectricPotential

SEScalarElectricPotential *	m_Lead9ElectricPotential

SEScalarElectricPotential *	m_Lead10ElectricPotential

SEScalarElectricPotential *	m_Lead11ElectricPotential

SEScalarElectricPotential *	m_Lead12ElectricPotential

std::stringstream	m_ss

Protected Attributes inherited from biogears::SESystem
std::stringstream	m_ss

Protected Attributes inherited from biogears::Loggable
Logger *	m_Logger

Friends
class	BioGears

class	BioGearsEngineTest

Additional Inherited Members
Static Public Attributes inherited from biogears::Loggable
static const std::string	empty

static const char *	empty_cStr

Detailed Description

Generic ECG machine to assess the heart rhythm.

Constructor & Destructor Documentation

biogears::ECG::ECG ( BioGears & bg )

protected

biogears::ECG::~ECG ( )

overridevirtual

Member Function Documentation

const char* biogears::ECG::classname ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEElectroCardioGram.

void biogears::ECG::Clear ( )

overridevirtual

Cleans up any memory this class is responsible for.

Reimplemented from biogears::SEElectroCardioGram.

size_t biogears::ECG::hash_code ( ) const

inlineoverridevirtual

Reimplemented from biogears::SEElectroCardioGram.

void biogears::ECG::Initialize ( )

overridevirtual

Initializes the ECG specific quantities.

Local member variables used in the ECG class are initialized here. These variables are used to keep track of the heart cycle and to create the ECG machine's output. SEElectrocardioGramInterpolater also loads in the data needed to create the output and interpolates it to match our time step. Placing the variables in this function allows for the system to be easy initialized at the beginning of a simulation or after a crash.

Reimplemented from biogears::BioGearsSystem.

bool biogears::ECG::Load ( const CDM::BioGearsElectroCardioGramData & in )

virtual

auto biogears::ECG::make_unique ( BioGears & bg ) -> std::unique_ptr<ECG>

staticprotected

void biogears::ECG::PostProcess ( )

overridevirtual

Post process updates the math after the circuit calculation are done.

At this time, we do not have a circuit model for the ECG machine so this function is left empty. The PostProcess function is included to preserve our system methodology and as a placeholder for models developed in the future.

Implements biogears::BioGearsSystem.

void biogears::ECG::PreProcess ( )

overridevirtual

Prepares the ECG machine for the circuit solver.

At this time, we do not have a circuit model for the ECG machine so this function is left empty. The PreProcess function is included to preserve our system methodology and as a placeholder for models developed in the future.

Implements biogears::BioGearsSystem.

void biogears::ECG::Process ( )

overridevirtual

Process creates the ECG output.

The process function queries the heart rhythm and heart rate from the cardiovascular system. The time period of the heart beat is determined from the heart rate and a new iterator on the waveform is initialized if the queried rhythm is Normal Sinus. The iterator holds the value of the waveform data at a specific time point on the interpolated waveform data. Process increments the time point and sums up the value of any active iterators. The iterators continue being incremented until they reach the end of the interpolated waveform data. If there are no active iterators, the output defaults to 0 mV.

Implements biogears::BioGearsSystem.

void biogears::ECG::SetUp ( )

overrideprotectedvirtual

Implements biogears::BioGearsSystem.

static size_t biogears::ECG::TypeHash ( )

inlinestatic

static constexpr char const* const biogears::ECG::TypeTag ( )

inlinestatic

CDM::BioGearsElectroCardioGramData * biogears::ECG::Unload ( ) const

overridevirtual

Reimplemented from biogears::SEElectroCardioGram.

void biogears::ECG::Unload ( CDM::BioGearsElectroCardioGramData & data ) const

protectedvirtual

Friends And Related Function Documentation

friend class BioGears

friend

friend class BioGearsEngineTest

friend

Member Data Documentation

BioGears& biogears::ECG::m_data

protected

double biogears::ECG::m_dt_s

protected

SEScalarTime biogears::ECG::m_heartRhythmPeriod

protected

SEScalarTime biogears::ECG::m_heartRhythmTime

protected

SEElectroCardioGramInterpolator biogears::ECG::m_interpolator

protected
