OverrideData

Override a patient parameter. More...

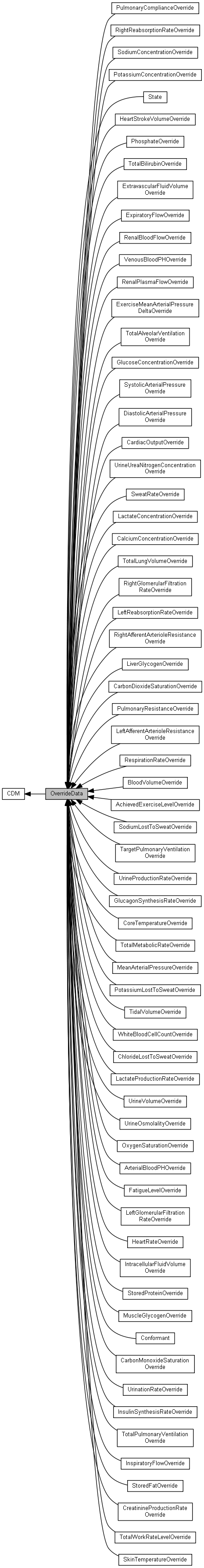

Collaboration diagram for OverrideData:

Modules
	ArterialBloodPHOverride
	Measure of acidity or basicity of the arterial blood.
	CalciumConcentrationOverride
	CarbonDioxideSaturationOverride
	The fraction of hemoglobin that is carbon dioxide bound.
	CarbonMonoxideSaturationOverride
	The fraction of hemoglobin that is carbon monoxide bound.
	GlucoseConcentrationOverride
	LactateConcentrationOverride
	OxygenSaturationOverride
	The fraction of hemoglobin that is oxygen bound.
	PhosphateOverride
	Sum of all inorganic phosphate in the blood.
	PotassiumConcentrationOverride
	SodiumConcentrationOverride
	TotalBilirubinOverride
	Concentration of bilirubin in plasma in indicative of progression of sepsis.
	VenousBloodPHOverride
	Measure of acidity or basicity of the venous blood.
	WhiteBloodCellCountOverride
	Total number of white blood cells in the blood.
	BloodVolumeOverride
	The total volume of fluid within the cardiovascular system.
	CardiacOutputOverride
	The volume of blood being pumped from the heart in a given time interval.
	DiastolicArterialPressureOverride
	The minimum pressure in the aorta over the course of a cardiac cycle.
	HeartRateOverride
	The frequency of heart beat.
	HeartStrokeVolumeOverride
	The volume of blood pumped from the left ventricle in one contraction.
	MeanArterialPressureOverride
	Pressure produced.
	SystolicArterialPressureOverride
	The maximum pressure in the aorta over the course of a cardiac cycle.
	InsulinSynthesisRateOverride
	Insulin production rate.
	GlucagonSynthesisRateOverride
	Glucagon production rate.
	AchievedExerciseLevelOverride
	The fraction of how much of the requested exercise the patient is able to achieve. 1.0 means the the patient is performing at the requested level. Nan is the patient is not exercising (no Action)
	ChlorideLostToSweatOverride
	Tracks the total amount of chloride lost while sweating during exercise.
	CoreTemperatureOverride
	The internal body temperature.
	CreatinineProductionRateOverride
	The generation of creatinine in the muscle tissue per.
	ExerciseMeanArterialPressureDeltaOverride
	The pressure delta that occurs during exercise. Used to modify the baroreceptor set-point.
	FatigueLevelOverride
	The exhaustion level of the body, or inability to perform physical exercise.
	LactateProductionRateOverride
	The molar amount of lactate generated on the tissue level from anaerobic metabolism.
	PotassiumLostToSweatOverride
	Tracks the total amount of potassium lost while sweating during exercise.
	SkinTemperatureOverride
	The skin surface temperature.
	SodiumLostToSweatOverride
	Tracks the total amount of sodium lost while sweating during exercise.
	SweatRateOverride
	Mass of sweat generated per unit time due to elevated core temperature.
	TotalMetabolicRateOverride
	The basal metabolic rate plus additional energy expenditure rates due to activity.
	TotalWorkRateLevelOverride
	The current patient work rate above basal over the maximum work rate capable by the patient.
	LeftAfferentArterioleResistanceOverride
	resistance to flow going into the glomerular capillaries in the left Kidney
	LeftGlomerularFiltrationRateOverride
	Flow rate of filtrate into the tubules in left Kidney.
	LeftReabsorptionRateOverride
	Rate at which fluid or a substance is transported into the peritubular capillaries in the left Kidney.
	RenalBloodFlowOverride
	Blood flow into the kidney that is not filtered into the tubules.
	RenalPlasmaFlowOverride
	Plasma flow into the kidney that is not filtered into the tubules.
	RightAfferentArterioleResistanceOverride
	resistance to flow going into the glomerular capillaries in the left Kidney
	RightGlomerularFiltrationRateOverride
	Flow rate of filtrate into the tubules in left Kidney.
	RightReabsorptionRateOverride
	Rate at which fluid or a substance is transported into the peritubular capillaries in the left Kidney.
	UrinationRateOverride
	Rate that fluid exits the bladder.
	UrineProductionRateOverride
	The urine production rate.
	UrineOsmolalityOverride
	The osmolar pressure contributions of the sodium, urea and glucose divided by the mass of the fluid.
	UrineVolumeOverride
	The volume of the urine in the bladder.
	UrineUreaNitrogenConcentrationOverride
	Scaled concentration of Urea in the bladder.
	ExpiratoryFlowOverride
	Instantaneous airflow out of the lungs (negative value when inhaling)
	InspiratoryFlowOverride
	TInstantaneous airflow into the lungs (negative value when exhaling).
	PulmonaryComplianceOverride
	The total compliance of the lungs.
	PulmonaryResistanceOverride
	The total resistance to airflow through the lungs.
	RespirationRateOverride
	The frequency of respiration.
	TargetPulmonaryVentilationOverride
	The target ventilation determined by the chemoreceptor method in the Nervous system, used by Respiratory to drive Respiration.
	TidalVolumeOverride
	The volume of air moved into or out of the lungs during normal respiration.
	TotalAlveolarVentilationOverride
	The air flow to the alveoli.
	TotalLungVolumeOverride
	The total volume of air within the lungs at any given time.
	TotalPulmonaryVentilationOverride
	The flow rate representing the exchange of air between the lungs and ambient air.
	ExtravascularFluidVolumeOverride
	Total fluid volume outside of the blood vessels.
	IntracellularFluidVolumeOverride
	Volume of fluid in the cells outside of the blood vessels.
	LiverGlycogenOverride
	The glucose stored as glycogen in the liver tissue.
	MuscleGlycogenOverride
	The glucose stored as glycogen in the muscle tissue.
	StoredFatOverride
	The triacylglycerol stored in the fat tissue.
	StoredProteinOverride
	The amino acids stored as protein in the muscle tissue.
	State
	Is the override on or off.
	Conformant
	Is the resulting phusiology conformant.

Detailed Description

Override a patient parameter.
